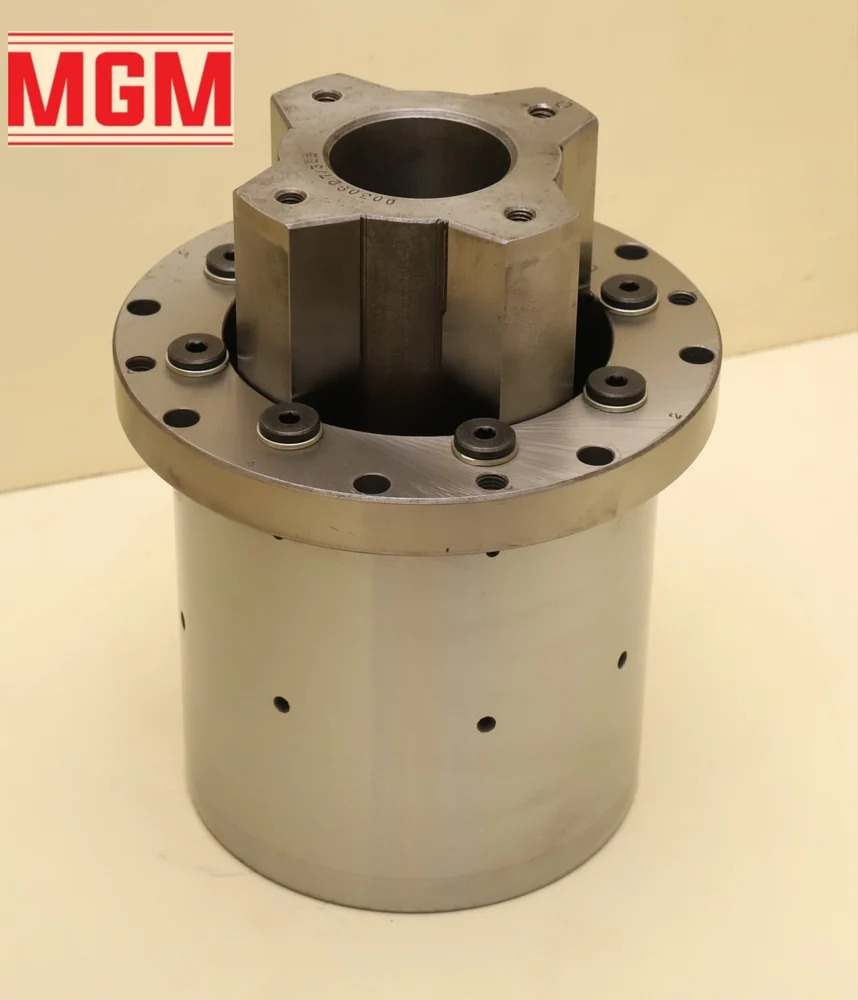

CNC Gear Shaper Guide

Name: CNC Gear Shaper Guide
Brand: MASTER GEARS AND MACHINERY
Price: 1200 INR
Availability: InStock

Price 1200 INR/ Piece

Get a Price/Quote

MOQ : 50 Pieces

CNC Gear Shaper Guide Specification

Noise Level
Low

Power Source
Electric

Application
Industrial Gear Manufacturing

Spindle Speed
Up to 800 rpm

Cutting Speed
Variable (dependent on application)

Tool Type
Internal and External Gear Shaper Guide

Product Type
CNC Gear Shaper Guide

Material
Stainless Steel

Computerized
Yes

Automatic Grade
Semi-Automatic

Control System
CNC (Computer Numerical Control)

Drive Type
Hydraulic

Voltage
415 V

Weight (kg)
3100 kg

Dimension (L*W*H)
2500 mm x 1800 mm x 2100 mm

Capacity
High precision gear shaping

Feature
High accuracy, Durable construction, Low maintenance

Color
Blue and White

Safety Features
Overload protection, Emergency stop, Safety guard

Working Table Load Capacity
500 kg

Shaping Accuracy
0.015 mm

Operating Interface
Touchscreen/Keypad digital interface

Coolant System
Inbuilt recirculation type

Max Gear Diameter
Up to 500 mm

Phase Type
Three Phase

Machine Base
Vibration damped heavy cast iron

Gear Module Capacity
Up to 10 module

Lubrication System
Centralized automatic

Shaping Stroke
Up to 250 mm

Table Diameter
300 mm

CNC Gear Shaper Guide Trade Information

Minimum Order Quantity
50 Pieces

Supply Ability
5000 Pieces Per Month

Delivery Time
10 Days

Main Domestic Market
All India

About CNC Gear Shaper Guide

Our organization is remarkableentity, engaged in offering superior assortment CNC Gear ShaperGuide. It is designed and manufactured using top quality raw material andcomponents that source from trusted and authentic vendors of the industry. Itis highly recognized for its attributes such as high strength, easyinstallation, original design and longer working life. Clients can avail thisrange of Gear Shaper Guide from us in various specifications at costeffective prices to meet their variegated requirements

Precision Shaping for Industrial Gears

Achieve high-precision gear manufacturing with this CNC Gear Shaper Guide, delivering shaping accuracy as fine as 0.015 mm. It supports both internal and external gear shaping, handling gear modules up to 10 module and gear diameters up to 500 mm. The heavy-duty construction and advanced CNC controls enable consistent, repeatable results in demanding industrial environments.

Advanced Features for Ease of Use and Safety

With semi-automatic operation, operators enjoy a user-friendly experience via the touchscreen or keypad digital interface. The machine incorporates essential safety measures such as overload protection, an emergency stop, and safety guards, ensuring operator wellbeing throughout the shaping process. Centralized lubrication and an inbuilt coolant recirculation system reduce maintenance needs and component wear.

Engineered for Productivity and Durability

The vibration-damped cast iron machine base, large working table, and high spindle speed (up to 800 rpm) support heavy workpieces and fast operation. Capable of handling high table load (500 kg) and measuring 2500 mm x 1800 mm x 2100 mm, this blue-and-white gear shaper is well-suited for exporters, manufacturers, service providers, or suppliers seeking durability and impressive throughput in the modern workshop.

FAQ's of CNC Gear Shaper Guide:

Q: How does the CNC Gear Shaper Guide ensure high shaping accuracy?

A: The guide incorporates advanced CNC controls coupled with a vibration-damped heavy cast iron base, maintaining a high shaping accuracy of 0.015 mm. Automatic lubrication and an inbuilt coolant system further improve precision and tool longevity.

Q: What types of gears can be shaped using this machine?

A: This CNC Gear Shaper Guide is designed for both internal and external gear shaping, accommodating gear diameters up to 500 mm and modules up to 10, making it suitable for diverse industrial gear manufacturing applications.

Q: When is it ideal to use this gear shaper guide in a production process?

A: The gear shaper guide is ideal for use in scenarios where high-precision, high-capacity, and efficient gear shaping are required, such as industrial production lines, batch manufacturing, or custom gear workshops.

Q: Where is the CNC Gear Shaper Guide typically installed?

A: These machines are commonly installed in industrial manufacturing facilities, gear production plants, and workshops in India and abroad. They are intended for exporters, suppliers, manufacturers, and service providers seeking advanced gear-cutting capability.

Q: What is the benefit of the built-in coolant and lubrication systems?

A: The inbuilt recirculation coolant and centralized automatic lubrication systems help maintain optimal working temperatures, reduce tool wear, and minimize maintenance requirements, resulting in extended machine life and improved performance.

Q: How user-friendly is the operating interface?

A: The machine features a modern digital interface with touchscreen and keypad options, making programming and adjustments straightforward for operators, thereby reducing training time and increasing productivity.

Q: What safety features are included in the machine?

A: To ensure operator safety, the machine is equipped with overload protection, emergency stop buttons, and safety guards, all designed to provide a secure working environment during high-precision gear shaping operations.
